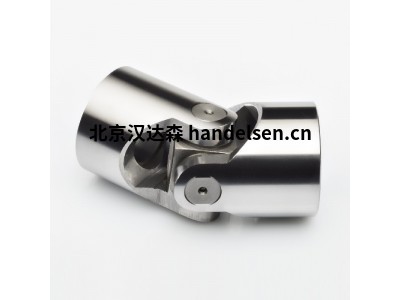

意大利Mario Ferri G-GB系列萬向節SG0S0800接頭
它們都由一個星輪核心和兩個有叉端的半接頭組成。在星輪的銷和叉孔之間,安裝了4個耐磨滑動套(G系列)或滾子軸承(H系列高速)。
H系列(與滾子軸承的高速接頭)不需要潤滑或維護,因為它們的軸承是潤滑壽命。
具有普通軸承G系列的接頭是中低速度和有沖擊載荷。
對于高速和相對較低的扭轉類型的滾子軸承(H-HB)推薦.
這兩個版本提供高效率,無聲運行,低摩擦系數競爭價格.
所有的摩擦表面都是硬化的和地面。
單一接頭的工作角為45°,雙接頭為90°。
G系列的轉速為每分鐘1000轉,H系列的最大轉速為每分鐘4000轉.
所有這些接頭也提供伸縮版本。
帶有滑動灌木的連環圖
*中低速度和有沖擊載荷的地方
工作角45°
*轉速每分鐘1000轉
應要求特別處決
連接點有2個版本:
-G版至DIN808
- GB version to DIN 808/7551
帶有滾針軸承的接頭
*高速和較低扭轉
*工作角45°
*轉速每分鐘4000轉
應要求特別處決
連接點有2個版本:
-H版至DIN808
- HB version to DIN 808/7551
G-GB系列單接頭
- 工作角45°
- 轉速每分鐘1000轉
- 應要求特別處決
類型
|
編碼
無鍵盤
|
D
|
D
|
L2
|
L1
|
C
|
編碼
一個鍵盤通道
|
編碼
兩個鍵型
|
A
|
b
|
編碼
2平方孔
|
Q
|
*SW
|
重量 Kq
|
| 01G |
SG0S0600 3D |
6 |
16 |
34 |
17 |
8 |
SG0S061C 3D |
SG0S062C 3D |
2 |
7 |
SG0S062Q 3D |
6 |
6 |
0,05 |
| 02G |
SG0S0800 3D |
8 |
16 |
40 |
20 |
11 |
SG0S081C 3D |
SG0S082C 3D |
2 |
9 |
SG0S082Q 3D |
8 |
8 |
0,05 |
| 03G |
SG0S1000 3D |
10 |
22 |
48 |
24 |
12 |
SG0S101C 3D |
SG0S102C 3D |
3 |
11,4 |
SG0S102Q 3D |
10 |
10 |
0,10 |
| 04G |
SG0S1200 3D |
12 |
25 |
56 |
28 |
13 |
SG0S121C 3D |
SG0S122C 3D |
4 |
13,8 |
SG0S122Q 3D |
12 |
12 |
0,16 |
| 05G |
SG0S1400 3D |
14 |
28 |
60 |
30 |
14 |
SG0S141C 3D |
SG0S142C 3D |
5 |
16,3 |
SG0S142Q 3D |
14 |
14 |
0,20 |
| 1G |
SG0S1600 3D |
16 |
32 |
68 |
34 |
16 |
SG0S161C 3D |
SG0S162C 3D |
5 |
18,3 |
SG0S162Q 3D |
16 |
16 |
0,30 |
| 2G |
SG0S1800 3D |
18 |
36 |
74 |
37 |
17 |
SG0S181C 3D |
SG0S182C 3D |
6 |
20,8 |
SG0S182Q 3D |
18 |
18 |
0,45 |
| 3G |
SG0S2000 3D |
20 |
42 |
82 |
41 |
18 |
SG0S201C 3D |
SG0S202C 3D |
6 |
22,8 |
SG0S202Q 3D |
20 |
20 |
0,60 |
| 4G |
SG0S2200 3D |
22 |
45 |
95 |
47,5 |
22 |
SG0S221C 3D |
SG0S222C 3D |
6 |
24,8 |
SG0S222Q 3D |
22 |
22 |
0,95 |
| 5G |
SG0S2500 3D |
25 |
50 |
108 |
54 |
26 |
SG0S251C 3D |
SG0S252C 3D |
8 |
28,3 |
SG0S252Q 3D |
25 |
25 |
1,20 |
| 6G |
SG0S3000 3D |
30 |
58 |
122 |
61 |
29 |
SG0S301C 3D |
SG0S302C 3D |
8 |
33,3 |
SG0S302Q 3D |
30 |
30 |
1,85 |
| 6G1 |
SG0S3200 3D |
32 |
58 |
130 |
65 |
33 |
SG0S321C 3D |
SG0S322C 3D |
10 |
35,3 |
SG0S322Q 3D |
30 |
30 |
2,00 |
| 7G |
SG0S3500 3D |
35 |
70 |
140 |
70 |
33 |
SG0S351C 3D |
SG0S352C 3D |
10 |
38,3 |
- |
** |
** |
3,15 |
| 8G |
SG0S4000 3D |
40 |
80 |
160 |
80 |
38 |
SG0S401C 3D |
SG0S402C 3D |
12 |
43,3 |
- |
** |
** |
4,60 |
| 9G |
SG0S5000 3D |
50 |
95 |
190 |
95 |
46 |
SG0S501C 3D |
SG0S502C 3D |
14 |
53,8 |
- |
** |
** |
7,60 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 03GB |
SGBS1000 3D |
10 |
16 |
52 |
26 |
15 |
SGBS101C 3D |
SGBS102C 3D |
3 |
11,4 |
SGBS082Q 3D |
8 |
8 |
0,05 |
| 04GB |
SGBS1200 3D |
12 |
22 |
62 |
31 |
18 |
SGBS121C 3D |
SGBS122C 3D |
4 |
13,8 |
SGBS102Q 3D |
10 |
10 |
0,12 |
| 1GB |
SGBS1600 3D |
16 |
25 |
74 |
37 |
21 |
SGBS161C 3D |
SGBS162C 3D |
5 |
18,3 |
SGBS122Q 3D |
12 |
12 |
0,20 |
| 3GB |
SGBS2000 3D |
20 |
32 |
86 |
43 |
24 |
SGBS201C 3D |
SGBS202C 3D |
6 |
22,8 |
SGBS162Q 3D |
16 |
16 |
0,35 |
| 5GB |
SGBS2500 3D |
25 |
42 |
108 |
54 |
31 |
SGBS251C 3D |
SGBS252C 3D |
8 |
28,3 |
SGBS202Q 3D |
20 |
20 |
0,80 |
| 6GB |
SGBS3000 3D |
30 |
50 |
132 |
66 |
38 |
SGBS301C 3D |
SGBS302C 3D |
8 |
33,3 |
SGBS252Q 3D |
25 |
25 |
1,20 |
| 8GB |
SGBS4000 3D |
40 |
70 |
166 |
83 |
46 |
SGBS401C 3D |
SGBS402C 3D |
12 |
43,3 |
- |
** |
** |
2,90 |
